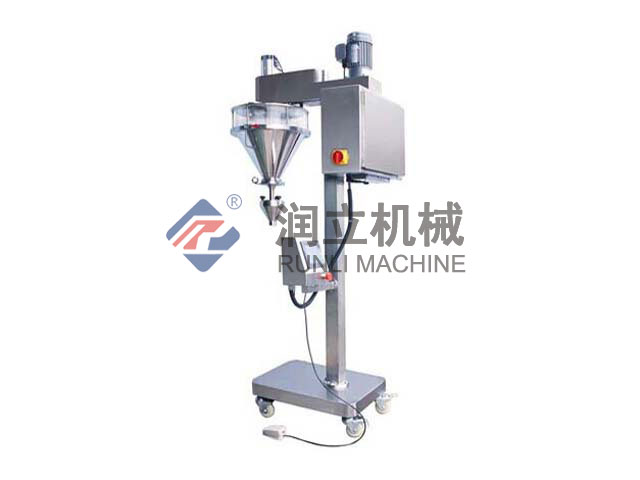

1, scope of application: applicable for packing the liquid or powder of illiquid and small granular materials, such as milk powder, protein powder, cocoa powder, additives, powder, small granules drugs, veterinary medicine, glucose, seasoning, solid beverage, carbon powder, talcum powder, pesticide, etc.
2, the machine appearance in addition to the motor the rest are all stainless steel; Composite transparent material box, easy unpick and wash without tools.
3, adopts servo motor drive screw, is not easy to wear, accurate positioning, rotational speed can be set, and the advantages of stable performance.
4, PLC control, stable work, anti-jamming, high weighing precision.
5, in both Chinese and English touch screen clearly shows the working state, operating instructions, fault status and production statistics, operation simple and intuitive.
6, with a reasonable position height adjustment wheel, convenient to adjust the head height.
7, all kinds of product parameters formula can be stored, for later use, store up seven formula.
8, replacement screw attachments, can adapt to superfine powder to small particles, and other materials.
9, the installation of centrifugal device for liquid material export guarantee accuracy, and for more material can be installed dust collection device is dust and absorb the dust.
model | RLL-5000 | RLL-500 |
Measurement method | Weighing feedback tracking spiral rotary filling | |
Packing weight | 10-5000g (conversion screw accessories) | 10-500g (conversion screw accessory) |
Packaging accuracy |
Package weight ≤ 100g, deviation ≤ ± 2% 100-500g deviation ≤ ± 1% ≥500G Deviation ≤ ± 0.5% |
Package weight ≤ 100g, deviation ≤ ± 2% 100g - 500g deviation ≤ ± 1% |
filling velocity | 40 - 120 Times / min | |
Power Supply | 380V three phase 50 / 60Hz | |
Total power | 1.5KW | 1.1KW |
Overall weight | 260KGS | 130KGS |
Overall volume | one thousand one hundred and forty × nine hundred and seventy × 2200mm | eight hundred × seven hundred and ninety × 1800mm |
Hopper volume | 45 L (plus 65 L) | 22 L (increase by 32 L) |
