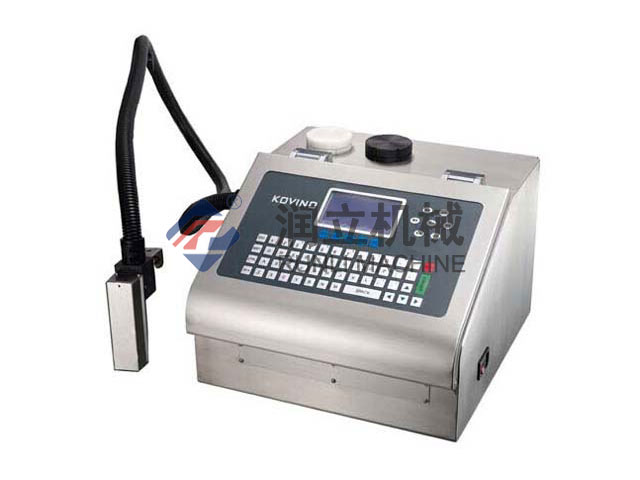

Small characters spurt the code machine: (RL - K7) used in today's popular 240 * 128 screens, can visually edit inserted into various special symbols on the screen, edit figure, very easily through the many kinds of lattice and the text screen input, design information, its stability and reliability can be satisfied with all kinds of production and processing enterprises for a long time continuous working, to ensure production and stable operation.
Advanced accessories:
1, the original spurt the code machine dedicated gear pump, imported diaphragm pump, shock absorber.
2, high efficiency, high speed, high automatic, intelligent, volume is small and exquisite.
3, all Chinese interface, use touch coated button design, low power circuit system.
4, highly integrated hardware circuit. Reasonable structure, strong anti-jamming capability, better insulation.
5, unique viscosity control method of automatic detection.
Functional technical excellence:
1, the built-in graphic editing functions. A key switch machine.
2, the whole intelligent automatic control, automatic cleaning nozzle, fault self diagnosis.
3, with functions of fault detection and alarm, no ink remind display function.
4, pinyin, location input method as SMS as convenient.
5, can store dozens of spray print information in SuiDiao.
6, the print head with automatic cleaning function.
7, all the parameters adjustment methods using digital setting, enhanced reliability
8, new apply to digital tube, printed matter, PCB product continuous printing printing control method.
9, multitasking operating system, can adjust the font size in the printing, change the print information, set the print parameters.
Technical parameters
The control unit
Touch the keyboard laminating machine control panel
Case of stainless steel material to IP54 protection ability
The host size 41 * 46 * 32 cm
Product detector SICK photoelectric reflex
Print function
Four kinds of print direction
Counting function
Real time printing
Information storage function
A single bond to adjust word wide word
A single bond print position adjustment
Serial number to print
Print the time delay
Print bold 0-9 times
Palm print information
Built-in icon editing functions
Printing parameters
Print lines of 5 x 7 dot matrix characters, three lines of jet printing, Numbers, letters, symbols, Chinese characters can be mixed
Printing speed of 3 m/SEC
1.5 to 18 mm high adjustable printed word
The direction of the print head 360 degrees in any direction
The print head and product distance is not more than 60 mm
The first and second class Chinese character fonts built-in international
Input pinyin input method location input method code input method
Nozzle specifications
Nozzle throat 2 meters
Nozzle specifications 65 microns
Ink road system
Ink road control main pump imported from the gear pump, independent of the diaphragm pump for cleaning
Unique way of viscosity control the viscosity of the real-time control
Fast dry ink ink environmental protection, the drying time is about 0.5 seconds, a variety of color can choose
Using the environment
4-45 ℃ temperature (40-117 ℉), boot mode
Humidity 10-90% RH (condensation)
220 v + 10% for 50 hz power supply requirements
