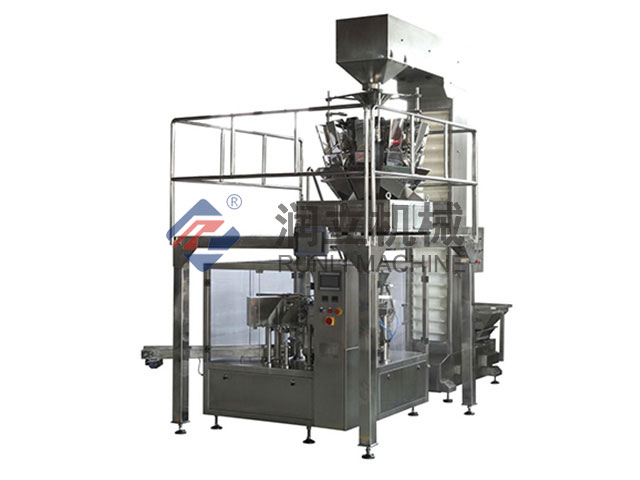

1. This machine USES the stable CAM mechanical transmission technology, make the equipment operation is stable, low fault rate, low energy consumption. At the same time, the machine USES high-end circuit structure, man-machine interface (such as PLC + HMI) technology, electromechanical integration, easy operation and simple. ?
2. Only on the large color touchscreen, corresponding input device can automatically adjust the packaging size, packaging speed, sealing temperature, etc.
3. The process of production equipment with automatic test system, and automatically adjust elements Angle parameters, the system will alarm and show the cause of the alarm, the touch screen. Technicians can troubleshoot directly. To achieve ??no bag or bags no success - no - no sealing??, packing high yield.
4. The products add the door stop, exhaust, compaction, automatic card, abnormal discharge, automatic filling details such as the function of lubricating oil, packaging process without manual operation, effectively improve the production efficiency, save the labor cost and management cost, greatly reduce the cost and improve production efficiency. ?
5. Packaging and material contact parts adopt stainless steel or other conform to the requirements of the food hygiene materials processing, to ensure that the food hygiene and safety, food hygiene standards.
6. Adopt PLC control system in Germany. Adopts stepless frequency converter, main motor, PLC, inverter, sensor, relay, contactor, pneumatic components for the international brand;
7. Packaging machine control measure according to release material, no waste of material.
8. The equipment configure security door, protect door use transparent organic glass.
9. The high accuracy digital sensors, realize high precision weighing.
10. Monitor in the help menu, convenient learning to use.
11. In the operation of the amplitude of each wire can be adjusted independently, can make the material more even and increase accuracy of combination.
12. Combined into the target weight of several hopper can be set up for blanking, congestion effectively solve the material.
13. The high accuracy high speed, through the CPU from rich combination of instantaneous chosen combination.
14. The equipment has the waterproof function, the production has been completed, equipment can be directly flush.
model | RL200-G |
Station | 8 stations (integrated adjustment) |
Bag material | composite membrane |
Bag type | Self supporting bag, flat bag, zipper self sealing bag |
Bag size | W:100~200mmL:100~350mm |
Fill range | Max: 2500g |
Measurement accuracy | ± 0.5-2g |
running speed | 60 times / min |
Packaging speed | 20-45 bags / min (speed depends on product itself and filling weight) |
Voltage | Three phase four wire 380V50Hz |
Total power of the whole set of equipment | 5.2KW |
compressed air | 0.6m3/min (supplybyuser) (provided by the customer) |
Dimensions of the whole set of land occupying equipment | 4500*2500*3700mm |
