1. This machine USES the stable CAM mechanical transmission technology, make the equipment operation is stable, low fault rate, low energy consumption. At the same time, the machine USES high-end circuit structure, man-machine interface (such as PLC + HMI) technology, electromechanical integration, easy operation and simple.
2. Quick change packaging specifications, wide adjustment bag with motor control, hold down the control button clip width adjustment of each machine, easy to operate, save time.
3. All control by automation software system implementation, convenient function adjustment and technology upgrade. Adopt PLC control system in Germany. Adopts stepless frequency converter, main motor, PLC, inverter, sensor, relay, contactor, pneumatic components for the international brand;
4. The packaging machine in automatic detection, information feedback, and other functions, fault shows at a glance, high sensitive electronic eye tracking. In production run if there is no bag or bags without open, detection device control filling sealing, running status real-time display, automatic stop. Save the packing materials and raw materials, to ensure the packing space environment.
5. Automatic folding bag functions: automatically folding bag, packaging process that cooperation.
6. Send bag, storage bag can hold more bags, the bags quality is low, bag, bag rate is high.
7. The machine running noise: equipment operation within 70 db noise (outside the scope of 1 m).
8. Packaging machine control measure according to release material, no waste of material.
9. Form a complete set of equipment vibration device, ensure material will not produce the sealing clamp in the process of packaging materials.
10. The equipment configure security door, protect door use transparent organic glass.
11. A high precision digital sensors, realize high precision weighing.
12. Combined into the target weight of several hopper can be set up for blanking, congestion effectively solve the material.
13. The high accuracy high speed, through the CPU from rich combination of instantaneous chosen combination.
Station | Six stations |

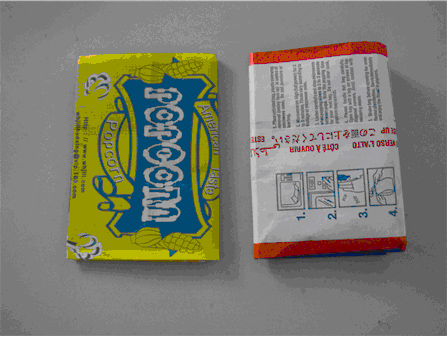

Bag type | Special bag for microwave popcorn |
Bag size | W:100-210mm L:100-350mm |
Fill range |
10-1000g |
accuracy | ± 0.5-1.5g |
Packaging speed | 10-45 bags / min (the speed is determined by the product itself and the filling weight) |
Voltage | 380V 3phase 50HZ |
power | 4.5kw |
compressed air | 0.6 cubic meters per minute (provided by users) |
The size of the whole set of equipment | four thousand and five hundred × two thousand and five hundred × 3700mm |
